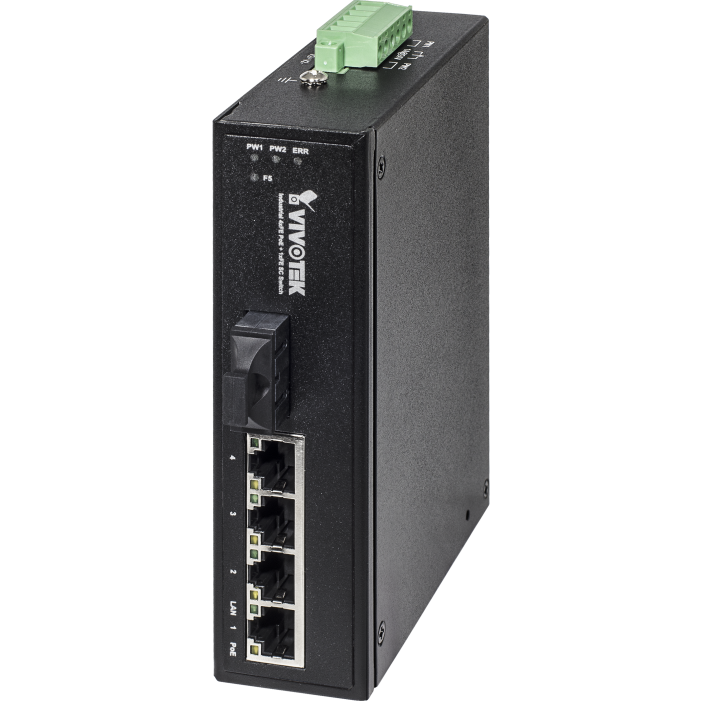

Vivotek AW-IHT-0502 Industrial 4XFE POE+1FE SWITCH SC Single Mode 30KM

AW-IHT-0502: Industrial 4XFE POE+1FE SWITCH SC Single Mode 30KM: 4 port 802.3at 30W POE 10/100M + 1 port 100M SC SM 30km, 48~56VDC input, -40°C to 75°C

$264.20

SKU: VIVOTEK:AW-IHT-0502 Categories: , , ,

AW-IHT-0502: Industrial 4XFE POE+1FE SWITCH SC Single Mode 30KM 4 port 802.3at 30W POE 10/100M + 1 port 100M SC SM 30km, 48~56VDC input, -40 C to 75 C

Vivotek AW-IHT-0502 Features

Hardware Specifications

  • Ethernet Ports: 4 x Fast Ethernet (RJ45), SC Single-mode 30 km Fast Ethernet (Fiber)
  • PoE Ports: 4
  • Resolution: Megapixel/D1/VGA
  • Compression: MJPEG/MPEG-4/H.264/H.265
  • Compatible Cameras: VIVOTEK Network Cameras
  • Power Requirement: Redundant Dual 44V-56VDC Power Input Removable Terminal Block
  • Power Consumption: 126W
  • LED Display: Power, Relay, LAN, PoE
  • Dimensions: 142 (L) x 105 (W) x 36.2 (H) mm
  • Weight: 0.48 kg (1.06 lbs)
  • Operating Temperature: -40°C ~ 75°C (-40°F ~ 167°F) with 5~95% (Non-condensing)
    What’s Included: QIG, Terminal Block, DIN-rail Brackets, Wall Mount Kit
  • Warranty: 2 Years

Power over Ethernet Specifications

  • Filtering/Forwarding Rates: 10Mbps, 100Mbps
  • Switch Throughput: N/A
  • Per Port PoE Power Output: 30W Max
  • Total PoE Power Budget: 120W
  • Transmission Method: Store & Forward
  • PoE Power Supply Type: End-Span
  • Power Pin Assignments: 1/2(+), 3/6(-)
  • Regulation Compliance: CE, C-Tick, FCC, LVD, VCCI
  • Standards Compliance: IEEE 802.3 10-BASE-T Ethernet, IEEE 802.3u 100-BASE-TX Fast Ethernet, IEEE 802.3x Flow Control, IEEE 802.3af Power over Ethernet, IEEE 802.3at Power over Ethernet Plus

Technical Specifications

Model
AW-IHT-0502
IP Camera Compatibility
Video Resolution
Megapixel/D1/VGA
Video Compression
MJPEG/MPEG-4/H.264/H.265
Compatible Camera List
VIVOTEK Network Cameras
Ethernet
Fast Ethernet (RJ45)
4
Fast Ethernet (Fiber)
SC Single-mode 30 km, 1310nm
Standards
IEEE 802.3 10-BASE-T (Ethernet)
Supported
IEEE 802.3u 100-BASE-TX (Fast Ethernet)
Supported
IEEE 802.3z 1000-BASE-X (Gigabit Ethernet)
Supported
IEEE 802.3x Flow Control (Full-Duplex Flow  Control)
Supported
IEEE 802.3af Power over Ethernet
Supported
IEEE 802.3at Power over Ethernet Plus
Supported
Ethernet Performance
MAC Address
1 K
Buffer Memory
128 KB
Transmission Method
Store and Forward
Backplane
1 Gbps
Auto-MDI/MDI-X, Auto-Negotiation
Supported
Filtering/Forwarding Rates
10Mbps
14,880 pps
100Mbps
148,000 pps
Transmission Media
10Base T
Cat. 3, 4, 5 UTP/STP
100Base TX
Cat. 5, 5e UTP/STP
It is highly recommended to use standard Cat. 5, 5e cables which are compliant with the
3P/ETL standard.
PoE Function
Number of PoE Out Ports
4
PoE Power Output
Per Port 56VDC, Max. 30W
802.3at/af Standard Compatible
Yes
Over Current Protection
Supported
Circuit Shorting Protection
Supported
Total PoE Power Budget
120W
Power Pin Assignment
1/2(+), 3/6(-)
PoE PD Auto Detection
Yes
General
LED Indicators
Power, Relay, LAN, PoE
Power Input
PW1: 48 ~ 56VDC
PW2: 48 ~ 56VDC
Redundant Power Backup
Power Consumption
126W
Alarm Relay Contact
Relay outputs with current carrying capacity of
1 A @ 24VDC
Housing
DIN-rail Mounting and Wall Mounting
Dimensions
142 (L) x 105 (W) x 36.2 (H) mm
Weight
0.48 kg
Operating Temperature
-40°C ~ 75°C
Storage Temperature
-40°C ~ 85°C
Humidity
Operating: 5~95% (Non-condensing)
Storage: 5~95% (Non-condensing)
Safety Certifications
CE, C-Tick, FCC, VCCI, LVD
Stability Testing
EN 55022/24
EN 55011
EN 60068-2-6
EN 60068-2-27
EN 60068-2-32
Accessory
Included Accessories
QIG, Terminal Block, DIN-rail Brackets, Wall Mount
Kit
Optional Power Supply
Din Rail Power Supply:
NDR-120-48:
90 ~ 264VAC In, 48 ~ 54VDC/120W Out, -20°C ~
70°C
Wall Mount Power Supply:
HLG-120H-54:
90 ~ 305VAC In, 54VDC/120W Out, -40°C ~ 70°C
