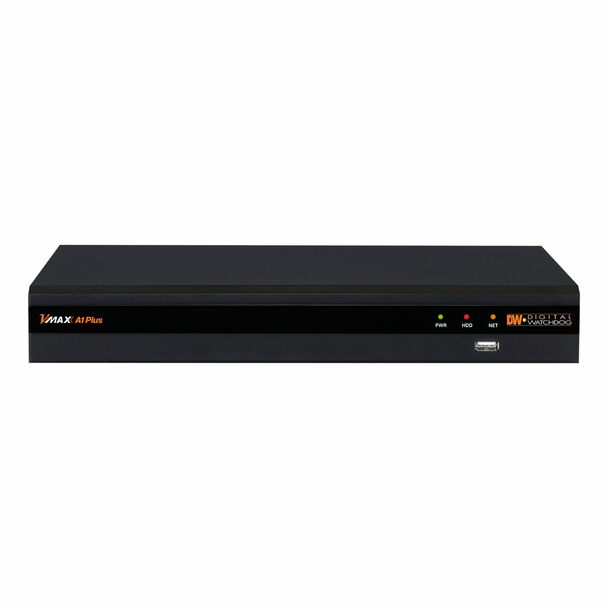

Digital Watchdog DW-VA1P42T VMAX A1 Plus Universal High Definition vi

DW-VA1P42T , VMAX A1 Plus Universal High Definition via Coax, Records all HD Formats and All Analog to 960H, H.264, 4ch, 2TB, Real Time Recording @30fps up to 1080P, Up to 5MP recording @40fps, 4ch Audio in, 1ch audio output, 4K/True HD/VGA monitor outs, 4 sensor input, 1 relay output, UTC, Spot Monitor Output, Free C3 CMS Software up to 144 channels, Free Mobile for IPhone, IPad, Apple TV, Android Smart Phones and Tablets, MAC Compatible, USB Backup, Free DDNS,  Watermark Images, Help Menu, Email and Text Event Notification with Snapshot, PTZ Control, Quick Setup Wizard, Pathfinder auto port forwarding, 5 Year Limited Warranty.

$381.14

SKU: DIGITAL WATCHDOG:DW-VA1P42T Categories: , , ,

DW-VA1P42T , VMAX A1 Plus Universal High Definition via Coax, Records all HD Formats and All Analog to 960H, H.264, 4ch, 2TB, Real Time Recording @30fps up to 1080P, Up to 5MP recording @40fps, 4ch Audio in, 1ch audio output, 4K/True HD/VGA monitor outs, 4 sensor input, 1 relay output, UTC, Spot Monitor Output, Free C3 CMS Software up to 144 channels, Free Mobile for IPhone, IPad, Apple TV, Android Smart Phones and Tablets, MAC Compatible, USB Backup, Free DDNS,  Watermark Images, Help Menu, Email and Text Event Notification with Snapshot, PTZ Control, Quick Setup Wizard, Pathfinder auto port forwarding, 5 Year Limited Warranty.



VIDEO

Signals supported
Analog signal up to 960H, HD-Analog and HD-TVI up to 5MP
Input video
4 channels
Video live
Frame rate
1-30fps, max 120fps total
Resolution
HD-analog and HD-TVI to 5MP and all CVBS analog resolutions up to 960H
Video output
4K True HD, VGA and Spot outputs
Audio
Input
4 input
Output
1 output
Codec
ADPCM
Alarm
Alarm input
4 input
Alarm output
1 output
Operating system
Embedded Linux®
Serial
1x RS485 for keyboard and PTZ control
User interface
Menu display
Graphical user interface (GUI)
Control method
IR remote control (optional), USB mouse
Screen display mode
1, 4 and sequence
Screen resolution
HDMI: 2560×1440, 3840×2160 (4K), 800×600, 1024×768, 1280×1024, 1920×1080
VGA: 800×600, 1024×768, 1280×1024, 1920×1080
Spot: D1

PERFORMANCE

Recording
Compression
H.264
Recording mode
<strongcontinuous, schedules,=”” sensor-activated,=”” motion=”” detection,=”” pre=”” and=”” post=”” alarm,=”” emergency,=”” quick=”” backup<=”” strong=””></strongcontinuous,>
Pre-recording
0~5 seconds
Post-recording
0~5 minutes
Recording rate
960×480/576 (960H): 120fps
1280×720 (HD): 120fps
1920×1080 (HD): 120fps
2560×1600 (4MP): 60fps
2560×1944 (5MP): 40fps
Recording resolutions
HD-analog and HD-TVI to 5MP and all analog resolutions up to 960H
Playback
Playback rate
960×480/576 (960H): 120fps
1280×720 (HD): 120fps
1920×1080 (HD): 120fps
2560×1600 (4MP): 60fps
2560×1944 (5MP): 40fps
Playback resolution
HD-analog and HD-TVI to 5MP and all analog resolutions up to 960H
Fast forward functions
x1, x2, x4, x8, x16, x32
Playback functions
Intelli-search by time bar, calendar (date and time), event search and thumbnail search
Storage
HDD interface
1x SATA HDD
Max. internal storage
Up to 16TB
HDD interface type
SATA
HDD healthcheck
Temperature, S.M.A.R.T. with e-mail notifications
Features
Camera color control
Via UTC
Digital zoom
Live and playback
Software upgrade
USB flash drive, network upgrade, FTP remote upgrade
Mobile client
Mobile app for Apple® and Android® smartphones and tablets and Apple TV®
Covert channel
Yes (live and playback)

NETWORK

Network connection
Ethernet (1 x Gigabit)
Streaming
Transmission speed live
960×480/576 (960H): 120fps
1280×720 (HD): 120fps
1920×1080 (HD): 120fps
2560×1600 (4MP): 60fps
2560×1944 (5MP): 40fps
Protocol
Fixed IP, DHCP, UPnP, DDNS
Access
Web viewer
Live, playback & configuration up to 5 multiple connections
Client monitoring software
Mac® (Apple® S/W), Pivot™ (CMS S/W)
Compatible mobile app
DW Mobile Plus
DW Site Viewer
Client monitoring software
Mac® (Apple® S/W), C3™ (CMS S/W)

GENERAL

Operating temperature / humidity
41°F ~ 104°F (5°C ~ 40°C), less than 80% (non-condensing)
Electrical
Power requirement
12V DC
Power consumption
18W, 1.5A
Dimensions
12.4″ x 9.52″ x 1.77″ (315 × 242 × 45 mm) (1U)
Weight
2.64 lbs (1.2kg)
Certification
CE and FCC and KCC and WEEE, RoHS
Warranty
5 years limited
$388.22 Bundle Price for selected items

Key Features

  • Universal HD over Coax® DVR records HD-Analog and HD-TVI and all analog up to 960H signals
  • Advanced H.264 Linux® embedded DVR
  • 4-channels, real-time 30fps recording up to 5MP
  • Up to 5MP recording resolution at 40fps
  • PathFinder™ Peer-to-Peer (P2P) remote connection
  • C3™ CMS and event server software up to 288Channels
  • Event camera group recording
  • Complete system analysis with real-time system and network status monitoring
  • Mobile Application for iPhone®, iPad®, iPod®, Android® Smart Phones and Tablets and Apple TV®
  • Mac® compatible remote ACS software
  • OSD and PTZ control via coax (UTC)
  • Signal hybrid detects any camera at HD-Analog, HD-TVI and 960H automatically.
  • Instant channel swap, no need to disconnect or reboot the DVR.
  • Snapshot Notify™: programmable interval snapshot notifications
  • 4K (3840 x 2160) True HD, VGA and Spot video outputs
  • 0TB – 16TB storage options
  • HDD calculation and auto-recording configuration
  • Thumbnail search with hour and 5-minute previews
  • 10-second jump buttons for playback and fast forward
  • Event notifications via email and C3™ CMS and push notifications to mobile devices
  • Multiplex – live, playback, recording, backup, network, configuration
  • 4 audio input, 1 audio output
  • 4 sensor input, 1 relay output
  • Digital spot monitoring output at D1 resolution
  • Simple and free DDNS service
  • Push notifications via DW® VMAX® Plus™ app
  • Add public view monitors with Spot Monitoring Modules
  • Easy web-based client with multi-user access
  • Help menu on major functions
  • Auto and manual firmware upgrades
  • 5 year limited warranty
