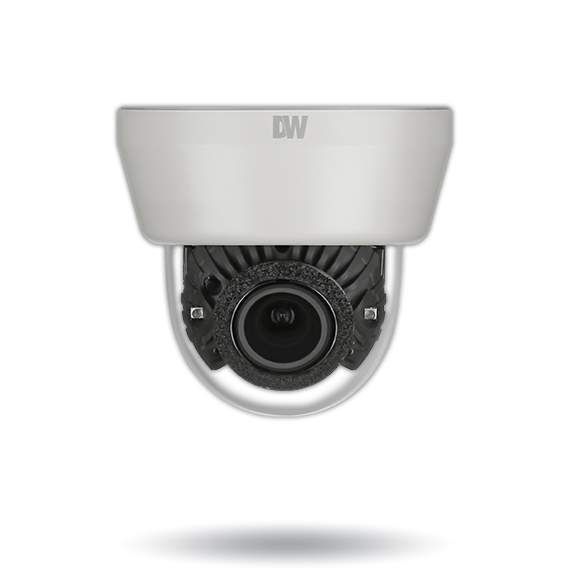

Digital Watchdog DWC-D4583WTIR 5MP indoor dome Snapit™ camera with 2.7~13.5mm vari-focal p-iris lens with motorized zoom and auto-focus and IR

DWC-D4583WTIR: Star-Light Plus Universal HD Series, Snapit Indoor Dome, 5MP@20fps/4MP@30fps, HD-Analog, HD-TVI, HD-CVI and all Legacy Resolutions, 2.7-13.5mm Varifocal Motorized Zoom and Auto Focus with P-Iris, T-WDR, 70ft IR, TDN with IR Cut Filter, Smart 3D-DNR, OSD Control Via Coax, 1 Alarm Input, De-Fog, UTP Built in, Dual Voltage, IP66, 5 Year Warranty

$227.15

SKU: DIGITAL WATCHDOG:DWC-D4583WTIR Categories: , , ,

DWC-D4583WTIR: Featuring Star-Light Plus™ color in near-total darkness, 5MP Star-Light Plus™ Universal HD over Coax® cameras deliver crystal-clear images and support HD-Analog, HD-TVI and HD-CVI signals. The unique Snapit™ housing makes installation a snap! and can be controlled via the same coax cable using UTC. All DW® Universal HD over Coax® cameras are engineered to work with our VMAX® A1 Plus™ DVRs using your existing coax infrastructure for a cost-effective, high-resolution surveillance solution.



Specifications

Image sensor
5MP 1/2.8″ CMOS
Active pixels
2608 (H) x 1960 (V)
Scanning system
Progressive scan
Frequency
60Hz / 50Hz
Signal technology
Universal HD over Coax® technology with HD-Analog, HD-TVI and HD-CVI signal support
Synchronization
Internal
Resolution
2592 x 1944 (5MP)
Minimum scene illumination
0.08 lux (color)
0 lux (B&W)
S/N ratio
55dB
Video output
HD-Analog and HD-TVI: 5MP/1944p @ 20fps and 12.5fps
HD-Analog, HD-TVI and HD-CVI: 4MP/1440p @ 30fps
2nd Video output CVBS output for video testing

I/O
Alarm output
1 alarm output
Audio input/output 1 built-in microphone
Audio sensitivity -38dB ±2dB (Sensitivity)
Audio frequency response 50Hz ~ 10KHz (Frequency Response)

LENS
Focal length
2.7 ~ 13.5mm
Lens type
Vari-focal p-iris lens with motorized zoom and auto-focus
Field of view (FoV)
85 – 32°
IR distance
70ft range

OPERATIONAL
Shutter mode
Auto
Shutter speed
1/30-1/30,000
Backlight
Yes
Star-Light (sense-up)
Off – x32
Wide dynamic range (WDR)
True WDR, off, on
Wide dynamic range (WDR) dB
120dB
Smart DNR™ 3D digital noise reduction
3D/2D DNR
White balance
Yes
Day / night
Auto, day (color), night (B/W)
Mirror / flip
Yes
Auto gain control
Max 72dB
Motion detection
Yes
Privacy zones
Yes
Sharpness
Yes
Gamma
0.45
De-fog
Yes
RS485 / UTP built-in
Pelco D / UTC

ENVIRONMENTAL
Operating temperature
-4°F ~ 122°F (-20°C ~ 50°C)
Operating humidity
10–90% RH (non–condensing)
Other certifications
FCC, CE, ROHS

ELECTRICAL
Power requirement
DC12V/AC24V dual voltage
Power consumption
DC12V (LED OFF): 4.62W DC12V (LED ON): 7.13W
AC24V (LED OFF): 4.92W AC24V (LED ON): 6.7W

MECHANICAL
Material
Snapit™ plastic housing, polycarbonate dome
Dimensions
4.24″ x 3.9″ (107.8 x 99.1 mm)
Weight
0.55 lbs (0.25kg)
$259.01 Bundle Price for selected items

Key Features

  • Universal HD over Coax® technology with HD-Analog, HD-TVI and HD-CVI signal support
  • Star-Light Plus™ color in near-total darkness technology
  • 1/2.8″ image sensor
  • 5MP at 20fps, 4MP at real-time 30fps
  • Built-in microphone
  • 2.7~13.5mm vari-focal motorized zoom p-iris lens with auto-focus
  • True wide dynamic range (WDR)
  • OSD control via coaxial (UTC)
  • Snapit™ easy installation housing
  • 70′ Smart IR™ with intelligent camera sync.
  • Smart DNR™ 3D digital noise reduction
  • True day/night mechanical IR cut filter
  • De-Fog™ extreme weather image compensation
  • Auto-sensing 24VAC/12VDC with line lock
  • Easy icon-driven OSD menu with a built-in joystick
  • Programmable privacy zones
  • Auto gain control (AGC)
  • Backlight compensation (BLC)
  • Auto white balance (AWB)
  • 1 alarm output
  • UTP built-in
  • UL listed
  • NDAA compliant
  • 5 year warranty
