Sale!

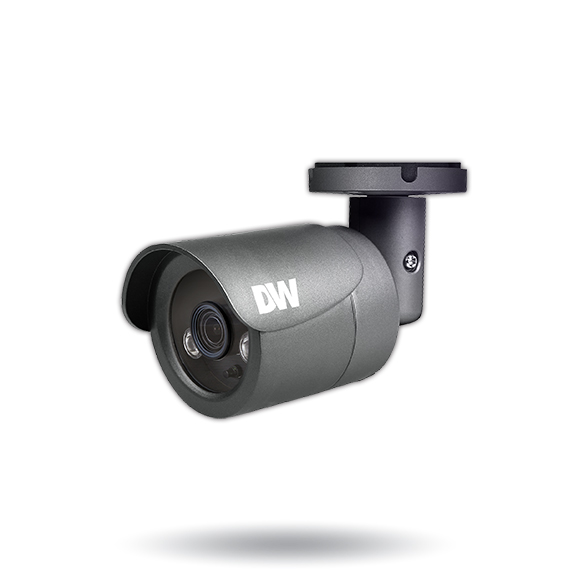

Digital Watchdog DWC-MB72Wi4TDMP MEGApix Weather Resistant Bullet, Sta
DWC-MB72Wi4TDMP: MEGApix Weather Resistant Bullet, Star-Light Plus, 2.1 Megapixel (1920×1080 @ 30fps), 1/2.8″ CMOS Sensor, 4mm Lens, 100ft IR, T-WDR, TDN, 3D DNR, AGC, AWB, Micro SD/SDHC/SDXC Card Slot (card not included, OnVIF Profile S, PoE + DC12V, 3D-DNR, IP67, 5 Year Warranty. NOTE: For use with DMP servers.
$317.42
DWC-MB72Wi4TDMP: MEGApix Weather Resistant Bullet, Star-Light Plus, 2.1 Megapixel (1920×1080 @ 30fps), 1/2.8″ CMOS Sensor, 4mm Lens, 100ft IR, T-WDR, TDN, 3D DNR, AGC, AWB, Micro SD/SDHC/SDXC Card Slot (card not included, OnVIF Profile S, PoE + DC12V, 3D-DNR, IP67, 5 Year Warranty. NOTE: For use with DMP servers.
IMAGE |
||
|
Image sensor
|
2.1MP/1080p 1/2.8” CMOS
|
|
|
Total pixels
|
1945 (H) × 1109 (V)
|
|
|
Minimum scene illumination
|
0.09 lux (color)
|
|
|
0.0 lux (B/W)
|
||
LENS |
||
|
Focal length
|
4.0mm, F2.6
|
|
|
Lens type
|
Fixed lens
|
|
|
Field of view (FoV)
|
86°
|
|
|
IR distance
|
100ft range
|
|
OPERATIONAL |
||
|
Shutter mode
|
Auto
|
|
|
Shutter speed
|
1/15 ~ 1/32,000
|
|
| Slow shutter | 1/2 | |
|
Auto gain control
|
Auto
|
|
|
Day / night
|
Auto
|
|
|
Smart DNR™ 3D digital noise reduction
|
3D DNR
|
|
| Flip | Yes | |
NETWORK |
||
|
LAN
|
RJ45 (10/100Base-T)
|
|
|
Video compression type
|
H.264
|
|
|
Resolution
|
2.1MP/1080p, 720p, D1
|
|
|
Frame rate
|
10fps
|
|
|
Video bitrate
|
1Mbps
|
|
|
Bitrate control
|
Smart bitrate control – CVBR
|
|
|
IP
|
IPv4, IPv6
|
|
|
Protocol
|
TCP/IP, UDP, RTSP, NTP, SSL, DNS, DHCP
|
|
|
ONVIF conformance
|
Yes
|
|
|
Video management software
|
DMP®
|
|
ENVIRONMENTAL |
||
|
Operating temperature
|
-4°F ~ 122°F (-20°C ~ 50°C)
|
|
|
Operating humidity
|
10–90% RH (non–condensing)
|
|
|
IP rating
|
IP67-rated
|
|
|
Other certifications
|
CE, FCC, RoHS
 |
|
ELECTRICAL |
||
|
Power requirement
|
DC12V, POE IEEE 802.3af class 2 (adaptor not Included)
|
|
|
Power consumption
|
DC12V: max 4.5W
PoE: max 6.0W
|
|
MECHANICAL |
||
|
Material
|
Aluminum bullet housing
|
|
|
Dimensions
|
6.41″ x 2.65″ (163 x 67.5 mm)
|
|
|
Weight
|
1.1 lbs (0.5 kg)
|
|
| Warranty | 5 year warranty | |
Key Features
Key Features
- 2.1MP/1080p 1/2.8″ image sensor
- Star-Light Plus™ color in near-total darkness technology
- 4.0mm fixed lens
- DMP integration
- 100′ Smart IR™ with intelligent camera sync
- Smart DNR™ 3D digital noise reduction
- True day/night mechanical IR cut filter
- Auto gain control (AGC)
- Auto white balance (AWB)
- Motion detection
- PoE class 2 and DC12V
- UL listed
- NDAA/TAA compliant
- IP67 dust-tight and waterproof to 3 feet
- 5 year warranty
