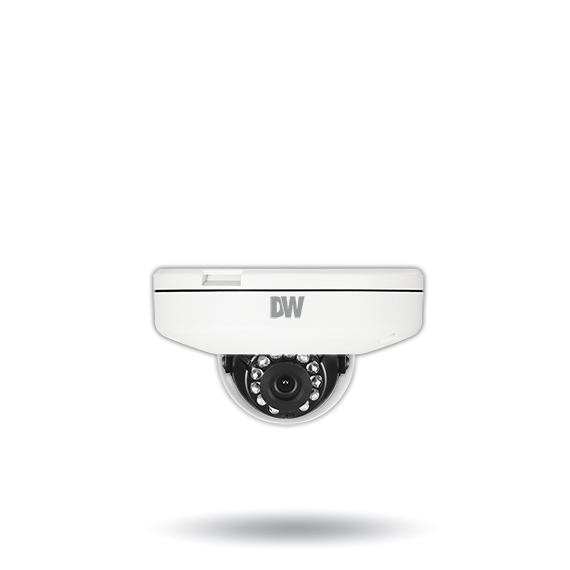

Digital Watchdog DWC-MF2Wi4TWDMP MEGApix Flat Indoor/Outdoor Vandal Do
DWC-MF2Wi4TWDMP: MEGApix Flat Indoor/Outdoor Vandal Dome Camera, Star-Light Plus, 2.1 Megapixel (1920×1080 @ 30fps), 1/2.8 Sensor, 4mm Fixed Lens, 50ft Range IR, T-WDR, Triple Codecs (H.265, H.264, MJPEG) with Simultaneous Streaming, Alarm in/Relay out, OnVIF Compliant, True D&N, T-WDR, 3D-DNR, PoE + DC12V, IP66, IK10, 5 Year Warranty. NOTE: For use with DMP servers.
$328.04
DWC-MF2Wi4TWDMP: MEGApix Flat Indoor/Outdoor Vandal Dome Camera, Star-Light Plus, 2.1 Megapixel (1920×1080 @ 30fps), 1/2.8 Sensor, 4mm Fixed Lens, 50ft Range IR, T-WDR, Triple Codecs (H.265, H.264, MJPEG) with Simultaneous Streaming, Alarm in/Relay out, OnVIF Compliant, True D&N, T-WDR, 3D-DNR, PoE + DC12V, IP66, IK10, 5 Year Warranty. NOTE: For use with DMP servers.
IMAGE |
||
|
Image sensor
|
2.1MP/1080p 1/2.7“ CMOS
|
|
|
Total pixels
|
1928 (H) x 1088 (V)
|
|
|
Minimum scene illumination
|
0.41 lux (color)
|
|
|
0.0 lux (B&W)
|
||
|
Video output
|
Local video output CVBS 1.0V p-p (75?), 4:3 aspect ratio
|
|
LENS |
||
|
Focal length
|
4.0mm F2.0
|
|
|
Lens type
|
Fixed lens
|
|
|
Field of view (FoV)
|
88°
|
|
|
IR distance
|
30ft range
|
|
OPERATIONAL |
||
|
Shutter mode
|
Auto, manual, anti-flicker, slow shutter
|
|
|
Shutter speed
|
1/30 ~ 1/8000
|
|
|
Slow Shutter
|
1~1/5,1/7.5, 1/15
|
|
|
Auto gain control
|
Auto
|
|
|
Day / night
|
Auto, day (color), night (B/W)
|
|
|
Smart DNR™ 3D digital noise reduction
|
0 ~ 11
|
|
|
Wide dynamic range (WDR)
|
on, off
|
|
|
Wide dynamic range (WDR) dB
|
120dB
|
|
|
Backlight Compensation (BLC)
|
On / off / HSBLC
|
|
|
Mirror & Flip
|
Yes
|
|
|
Alarm notifications
|
Notifications via e-mail, FTP server
|
|
NETWORK |
||
|
LAN
|
802.3 compliance 10/100 LAN
|
|
|
Video compression type
|
H.264
|
|
|
Resolution
|
1080p/720p/VGA/D1/CIF
|
|
|
Frame rate
|
Up to 30fps
|
|
|
Video bitrate
|
100Kbps ~ 10Mbps, Multi-rate for preview and recording
|
|
|
Bitrate control
|
Multi-streaming CBR/VBR at H.264 (controllable frame rate and bandwidth)
|
|
|
Streaming capability
|
Dual-stream at different rates and resolutions
|
|
|
IP
|
IPv4
|
|
|
Protocol
|
ONVIF, TCP/IP, UDP, autoIP, RTP(UDP/TCP), RTSP, NTP, HTTP,HTTPS, SSL, DNS, DDNS, DHCP, FTP, SMTP, ICMP, SNMPv1/v2c/v3(MIB-2)
|
|
|
Security
|
HTTPS(TLS), IP filtering, 802.1x, digest authentication (ID/PW)
|
|
|
ONVIF conformance
|
Yes
|
|
|
Video management software
|
DMP
|
|
ENVIRONMENTAL |
||
|
Operating temperature
|
-4°F ~ 122°F (-20°C ~ 50°C)
|
|
|
Operating humidity
|
Less than 90% (non-condensing)
|
|
|
IK rating
|
IK10 impact resistant
|
|
|
IP rating
|
IP66 certified weather and tamper resistant
|
|
|
Other certifications
|
CE, FCC, RoHS
|
|
ELECTRICAL |
||
|
Power requirement
|
DC 12V, PoE (IEEE 802.3af Class 3). (adaptor not included)
|
|
|
Power consumption
|
DC12V: max 5.2W PoE: max 7.1W
|
|
MECHANICAL |
||
|
Material
|
Aluminum vandal housing, polycarbonate dome
|
|
|
Dimensions
|
4.9″ x 2.9″ (125 x 74.3 mm)
|
|
|
Weight
|
1.54 lbs (0.7kg)
|
|
-
$328.04
Digital Watchdog DWC-MF2Wi4TWDMP MEGApix Flat Indoor/Outdoor Vandal Do
-
$21.83
Digital Watchdog DWC-GPLT Converter plate for electronic gang box – ivory
-
$36.52
Digital Watchdog DWC-V1CNMW Corner and pole mount bracket – white
-
$42.48
Digital Watchdog DWC-VFZCM Ceiling Mount for Flat Vandal Dome
$428.87 Bundle Price for selected items
Key Features
Key Features:
- 2.1MP/1080p 1/2.7″ image sensor
- 4.0mm fixed lens
- DMP integration
- True Wide Dynamic Range (WDR)
- Dual codecs (H.264, MJPEG) with simultaneous streaming
- 50′ Smart IR™ with intelligent camera sync.
- Ultra low-profile indoor/outdoor vandal dome camera housing
- Smart DNR™ 3D digital noise reduction
- True day/night mechanical IR cut filter
- Auto gain control (AGC)
- Auto white balance (AWB)
- Motion detection
- PoE class 2 and DC12V
- ONVIF conformant, profile S
- NDAA compliant
- IP66 certified weather and tamper-resistant
- IK10-rated impact resistant
- 5 year warranty
