Sale!

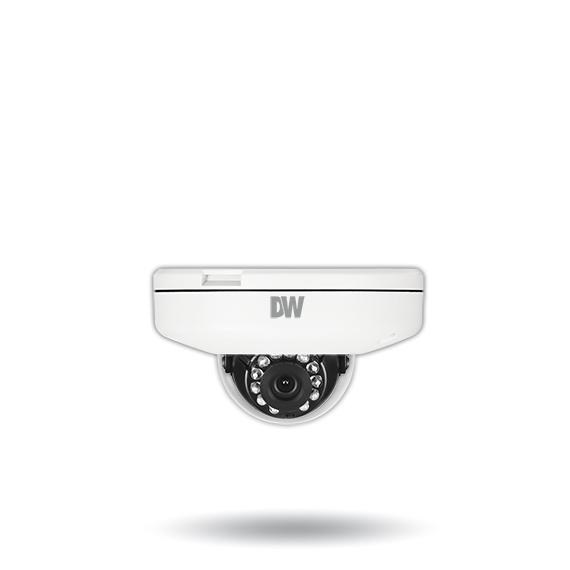

Digital Watchdog DWC-MF5Wi4TWDMP MEGApix Flat Indoor/Outdoor Vandal Do
DWC-MF5Wi4TWDMP: MEGApix Flat Indoor/Outdoor Vandal Dome Camera, Star-Light Plus, 5 Megapixels, 1/2.8 Sensor, 4mm Fixed Lens, 50ft Range IR, T-WDR, Triple Codecs (H.265, H.264, MJPEG) with Simultaneous Streaming, Alarm in/Relay out, OnVIF Compliant, True D&N, T-WDR, 3D-DNR, PoE + DC12V, IP66, IK10, 5 Year Warranty. NOTE: For use with DMP servers.
$349.28
DWC-MF5Wi4TWDMP: MEGApix Flat Indoor/Outdoor Vandal Dome Camera, Star-Light Plus, 5 Megapixels, 1/2.8 Sensor, 4mm Fixed Lens, 50ft Range IR, T-WDR, Triple Codecs (H.265, H.264, MJPEG) with Simultaneous Streaming, Alarm in/Relay out, OnVIF Compliant, True D&N, T-WDR, 3D-DNR, PoE + DC12V, IP66, IK10, 5 Year Warranty. NOTE: For use with DMP servers.
IMAGE |
||
|
Image sensor
|
4MP 1/2.8” CMOS
|
|
|
Total pixels
|
2560 (H) x 1440 (V)
|
|
|
Minimum scene illumination
|
0.16 lux (color)
|
|
|
0.0 lux (B/W)
|
||
LENS |
||
|
Focal length
|
4.0mm, F2.0
|
|
|
Lens type
|
Fixed lens
|
|
|
Field of view (FoV)
|
82.3°
|
|
|
IR distance
|
50ft range
|
|
OPERATIONAL |
||
|
Shutter mode
|
Auto
|
|
|
Shutter speed
|
1/15 ~ 1/32,000
|
|
| Slow shutter | 1/2 | |
|
Auto gain control
|
Auto
|
|
|
Day / night
|
Auto
|
|
|
Smart DNR™ 3D digital noise reduction
|
3D DNR
|
|
| Flip | Yes | |
NETWORK |
||
|
LAN
|
RJ45 (10/100Base-T)
|
|
|
Video compression type
|
H.264
|
|
|
Resolution
|
2560×1440, 2.1MP/1080p, VGA
|
|
|
Frame rate
|
10fps
|
|
|
Video bitrate
|
2Mbps
|
|
|
Bitrate control
|
Smart bitrate control – CVBR
|
|
|
IP
|
IPv4, IPv6
|
|
|
Protocol
|
TCP/IP, UDP, RTSP, NTP, SSL, DNS, DHCP
|
|
|
ONVIF conformance
|
Yes
|
|
|
Video management software
|
DMP®
|
|
ENVIRONMENTAL |
||
|
Operating temperature
|
-4°F ~ 122°F (-20°C ~ 50°C)
|
|
|
Operating humidity
|
10–90% RH (non–condensing)
|
|
|
IP rating
|
IP66-rated
|
|
| IK rating | IK10 impact resistant | |
|
Other certifications
|
CE, FCC, RoHS
 |
|
ELECTRICAL |
||
|
Power requirement
|
DC12V, POE IEEE 802.3af class 2 (adaptor not Included)
|
|
|
Power consumption
|
DC12V: max 5.9W
PoE: max 7.2W
|
|
MECHANICAL |
||
|
Material
|
Aluminum vandal housing, polycarbonate dome
|
|
|
Dimensions
|
4.9″ x 2.9″ (125 x 74.3 mm)
|
|
|
Weight
|
0.92 lbs (0.42kg)
|
|
| Warranty | 5 year warranty | |
-
$349.28
Digital Watchdog DWC-MF5Wi4TWDMP MEGApix Flat Indoor/Outdoor Vandal Do
-
$21.83
Digital Watchdog DWC-GPLT-W Converter plate for electronic gang box – white
-
$30.68
Digital Watchdog DWC-PMB-WLW Pole mount bracket for bullets and dome cameras
-
$36.52
Digital Watchdog DWC-V1CNMW Corner and pole mount bracket – white
$438.31 Bundle Price for selected items
Key Features
Key Features
- 4MP 1/2.8″ image sensor
- Star-Light Plus™ color in near-total darkness technology
- 4.0mm fixed lens
- DMP integration
- 50′ Smart IR™ with intelligent camera sync
- Ultra low-profile vandal dome camera housing
- Smart DNR™ 3D digital noise reduction
- True day/night mechanical IR cut filter
- Auto gain control (AGC)
- Auto white balance (AWB)
- Motion detection
- PoE class 3 and DC12V
- UL listed
- NDAA compliant
- IP66 environmental-rated dust-tight and water-resistant
- IK 10-rated impact-resistant
- 5 year warranty
