Sale!

Digital Watchdog DWC-MPVA5Wi28T Vandal ball IP camera with 2.8mm fixed lens, color in near-total darkness and IR

DWC-MPVA5Wi28T: MEGApix IVA+ Indoor/Outdoor Vandal Ball Camera, Star-Light Plus, 5 Megapixel 1/2.8” Image Sensor (1920×1080 @ 30fps), 2.8mm Fixed Lens, 100ft Smart IR, T-WDR (120dB), 3D-DNR, True D&N, Triple Codecs (H.265, H.264, MJPEG) with Simultaneous Streaming, PoE + DC12V, OnVIF Compliant,, IP67, IK10, 5 Year Warranty. NOTE: Intelligent Video Analytics PLUS inside.

$416.54

SKU: DIGITAL WATCHDOG:DWC-MPVA5Wi28T Categories: , , ,

DWC-MPVA5Wi28T: This MEGApix® IVA+™ IP camera is your gateway to powerful video analytics features. It is NDAA compliant and provides 5MP resolution at real-time 30fps. The MEGApix IVA+ cameras have a powerful engine to detect and classify people, vehicles and objects in real-time with support for logical rules. This camera features Star-Light Plus™ color in near-total darkness technology for quality video in any lighting condition, simultaneous H.265/H.264/MJPEG codec support and a 2.8mm fixed lens. The weather-resistant vandal ball cameras are IP67-rated and offer true 90° tilting and 360° rotation, eliminate IR reflections and offer easy angle adjustment to pan, rotate and tilt the camera for optimal image quality. All MEGApix cameras are ONVIF conformant, assuring their successful integration with any open platform solution on the market.



Specifications

Image sensor
5MP 1/2.8” CMOS
Total pixels
2592 (H) × 1944 (V)
Minimum scene illumination
0.13 lux (color)
0.0 lux (B/W)

LENS
Focal length
2.8mm, F1.8
Lens type
Fixed lens
HFoV / VFoV
103° / 78°
IR distance
100ft range

OPERATIONAL
Intelligent Video Analytics
IVA license: intrusion, line crossing, counting line, loitering, enter, exit, tamper
IVA+ license: object removed, tailgating, direction, stopped, appear, disappear, object left
Shutter mode
Auto, manual, anti-flicker, slow shutter
Shutter speed
1/15 ~ 1/32,000
Slow shutter 1/2,1/3,1/5,1/6,1/7.5, 1/10
Auto gain control
Auto
Day / night
Auto, day (color), night (B/W)
Smart DNR™ 3D digital noise reduction
3D DNR
Wide dynamic range (WDR)
True WDR (D-WDR) On, Off
Wide dynamic range (WDR) dB 120dB
Privacy zones 16 programmable privacy masks
Mirror and flip Yes
Alarm notifications
Notifications via e-mail, FTP and alarm output

NETWORK
LAN
RJ45 (10/100Base-T)
Video compression type
H.265, H.264, MJPEG
Resolution
H.265: 2592×1944, 2304×1296, 2.1MP/1080p, 720p, VGA, D1, CIF
H.264: 2592×1944, 2304×1296, 2.1MP/1080p, 720p, VGA, D1, CIF
MJPEG: 2.1MP/1080p, 720p, 800×600, VGA, 768×432, D1, CIF
Frame rate
Up to 30fps at all resolutions
Video bitrate
H.264 / H.265: 32Kbps ~ 14Mbps
MJPEG: 1Mbps ~ 40Mbps
Bitrate control
H.265 dual-stream or simultaneous H.265 / H.264 / MJPEG
Streaming capability
Dual-stream at different rates and resolutions
IP
IPv4, IPv6
Protocol
TCP/IP, UDP, AutoIP, RTP(UDP/TCP), RTSP, NTP, HTTP, HTTPS, SSL, DNS, DDNS, DHCP, FTP, SMTP, ICMP, SNMPv1/v2/v3(MIB-2), ONVIF
Security
HTTPS(TLS), IP filtering, 802.1x,
digest authentication(ID/PW)
ONVIF conformance
Yes
Web viewer
OS: Windows®, Mac® OS, Linux®
Browser: Internet Explorer®, Google Chrome®, Mozilla Firefox®, Safari®
NOTE: Chrome browser is recommended for IVA configuration.
Video management software
DW Spectrum® IPVMS

ENVIRONMENTAL
Operating temperature
-4°F ~ 122°F (-20°C ~ 50°C)
Operating humidity
10–90% RH (non–condensing)
IK rating IK10 impact resistant
IP rating
IP67-rated
Other certifications
CE, FCC, RoHS

ELECTRICAL
Power requirement
DC12V, POE IEEE 802.3af class 3 (adaptor not Included)
Power consumption
DC12V: max 6.5W
PoE: max 7.8W

MECHANICAL
Material
Aluminum vandal ball housing
Dimensions
4.92″ x 4.8″
(125 x 122 mm)
Weight
1.76 lbs (0.8kg)
Warranty 5 year warranty
$505.57 Bundle Price for selected items

Key Features

  • 5MP 1/2.8″ image sensor at real-time 30fps
  • Star-Light Plus™ color in near-total darkness technology
  • Intelligent Video Analytics (IVA) with extended features (IVA+)
  • Seamless integration and control of IVA rules with DW Spectrum® IPVMS
  • Reduce false alarms
  • Increase your recording storage with logic rules and smart recording
  • 2.8mm fixed lens
  • True Wide Dynamic Range (WDR)
  • Triple codecs (H.265, H.264, MJPEG) with simultaneous streaming
  • 100′ Smart IR™ with intelligent camera sync and no IR reflection

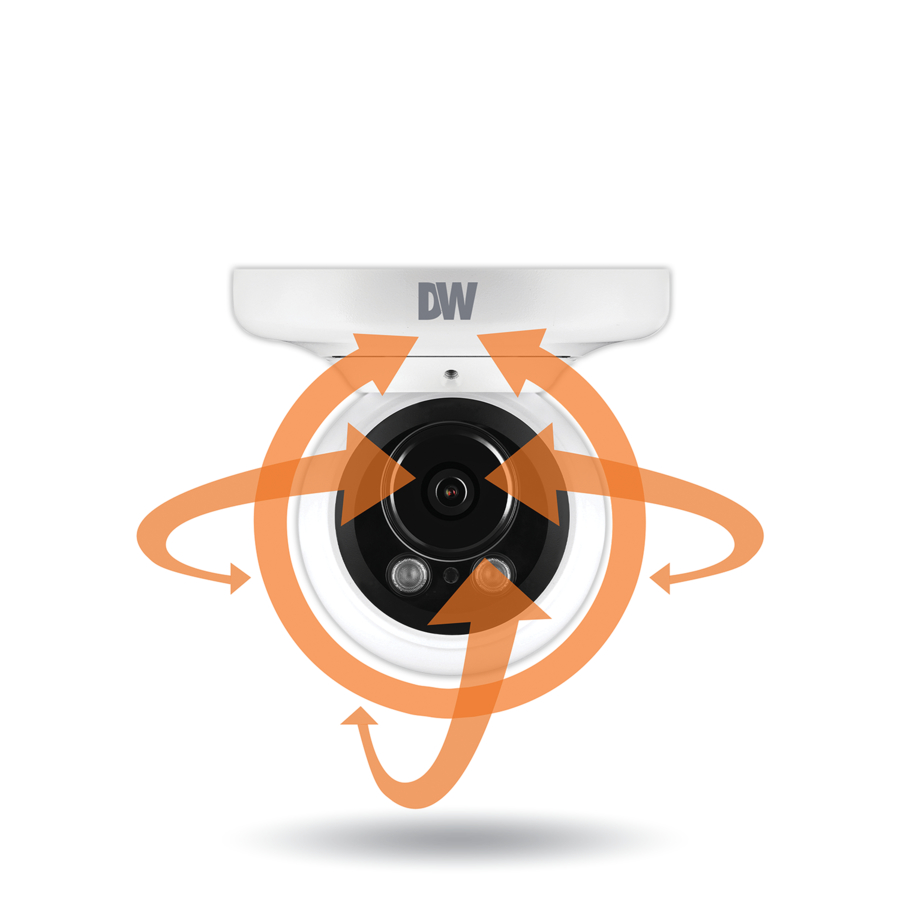

  • Vandal ball housing reduces IR reflection with true 90° tilting and 360° rotation
  • Smart DNR™ 3D digital noise reduction
  • True day/night with mechanical IR cut filter
  • Programmable privacy zones
  • Auto gain control (AGC)
  • Backlight compensation (BLC)
  • Auto white balance (AWB)
  • Motion detection
  • Web server built-in
  • PoE class 3 and DC12V
  • UL listed
  • ONVIF conformant, profile S
  • NDAA compliant
  • IP67 dust-tight and waterproof to 3 feet
  • IK 10-rated impact-resistant
  • 5 year warranty
