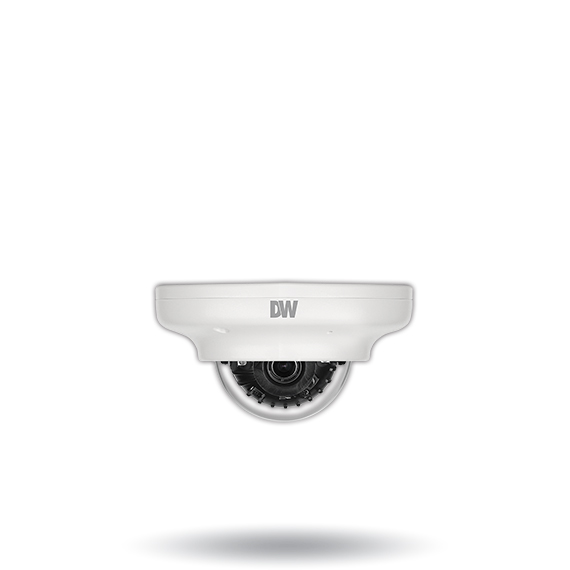

Digital Watchdog DWC-MV72Di28T Ultra low-profile vandal dome IP camera with 2.8mm fixed lens and IR

DWC-MV72Di28T: MEGApix Mini Indoor/Outdoor Vandal Dome, 2.1 Megapixel (1920×1080 @ 30fps), 2.8mm Fixed Lens, 100ft Smart IR, D-WDR, OnVIF Compliant, True D&N, 1/2.8″ CMOS Sensor, Triple Codecs(H.265, H.264, MJPEG), 3D DNR, AGC, AWB, PoE + DC12V, 3D-DNR, IP66 Certified. 5 Year Warranty

$241.31

SKU: DIGITAL WATCHDOG:DWC-MV72Di28T Categories: , ,

DWC-MV72Di28T: This MEGApix® IP camera provides 2.1MP/1080p resolution at real-time 30fps. It includes a 2.8mm fixed lens and simultaneous H.265/H.264/MJPEG codec support. The IP67-rated, IK-10 impact resistant ultra low-profile vandal dome camera brings the capabilities of a robust camera in a small and discrete housing. All MEGApix cameras are ONVIF conformant, assuring their successful integration with any open platform solution on the market.



Specifications

Image sensor
2.1MP/1080p 1/2.9” CMOS
Total pixels
2001 (H) × 1121 (V)
Minimum scene illumination
0.16 lux (color)
0.0 lux (B/W)

LENS
Focal length
2.8mm, F1.6
Lens type
Fixed lens
Field of view (FoV)
103°
IR distance
80ft range

OPERATIONAL
Shutter mode
Auto, manual, anti-flicker, slow shutter
Shutter speed
1/30 ~ 1/32,000
Slow shutter 2x, 3x, 5x, 6x, 7.5x, 10x
Auto gain control
Auto
Day / night
Auto, day (color), night (B/W)
Smart DNR™ 3D digital noise reduction
3D DNR
Wide dynamic range (WDR)
D-WDR On, Off
Backlight compensation (BLC) Yes
Privacy zones 16 programmable privacy masks
Mirror and flip Yes
Alarm notifications
Notifications via e-mail and FTP server recording

NETWORK
LAN
RJ45 (10/100Base-T)
Video compression type
H.265, H.264, MJPEG
Resolution
H.265: 2.1MP/1080p, 720p(main), CIF(sub)
H.264: 2.1MP/1080p, 720p(main), CIF(sub)
MJPEG: CIF
Frame rate
Up to 30fps at all resolutions
Video bitrate
100Kbps ~ 10Mbps, multi-rate for preview and recording
Bitrate control
Multistreaming CBR/VBR at H.264, H.265 (controllable frame rate and bandwidth)
Streaming capability
Dual-stream at different rates and resolutions
IP
IPv4, IPv6
Protocol
TCP/IP, UDP, AutoIP, RTP (UDP/TCP), RTSP, NTP, HTTP, HTTPS, SSL, DNS, DDNS, DHCP, FTP, SMTP, ICMP, SNMPv1/v2/v3 (MIB-2), ONVIF
Security
HTTPS(TLS), IP filtering, 802.1x,
digest authentication (ID/PW)
ONVIF conformance
Yes
Web viewer
OS: Windows®, Mac® OS, Linux® Browser: Internet Explorer®, Google Chrome®, Mozilla Firefox®, Safari®
Video management software
DW Spectrum® IPVMS

ENVIRONMENTAL
Operating temperature
-4°F ~ 122°F (-20°C ~ 50°C)
Operating humidity
10–90% RH (non–condensing)
IP rating
IP67-rated
IK rating IK10 impact-resistant
Other certifications
CE, FCC, RoHS

ELECTRICAL
Power requirement
DC12V, POE IEEE 802.3af class 2 (adaptor not Included)
Power consumption
DC12V: max 3.7W
PoE: max 5.4W

MECHANICAL
Material
Aluminum vandal housing, polycarbonate dome
Dimensions
 4.13″ x 2.4″ (105 x 61mm)
Weight
0.88 lbs (0.4kg)
Warranty 5 year warranty



$343.91 Bundle Price for selected items

Key Features

  • 2.1MP/1080p 1/2.9″ image sensor at real-time 30fps
  • 2.8mm fixed lens
  • Digital Wide Dynamic Range (D-WDR)
  • Triple codecs (H.265, H.264, MJPEG) with simultaneous streaming
  • 80′ Smart IR™ with intelligent camera sync
  • Ultra low-profile vandal dome camera housing
  • Smart DNR™ 3D digital noise reduction
  • True day/night mechanical IR cut filter
  • Programmable privacy zones
  • Auto gain control (AGC)
  • Backlight compensation (BLC)
  • Auto white balance (AWB)
  • Motion detection
  • Web server built-in
  • PoE class 2 and DC12V
  • Waterproof cabling
  • UL listed
  • ONVIF conformant, profile S
  • NDAA/TAA compliant
  • IP67 dust-tight and waterproof to 3 feet
  • IK 10-rated impact-resistant
  • 5 year warranty
