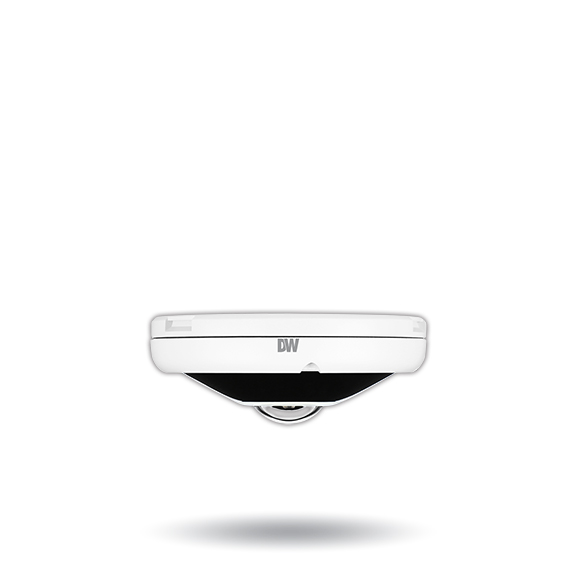

Digital Watchdog DWC-PVF9Di2TW 9MP color in near-total darkness fisheye IP camera with IVA
DWC-PVF9Di2TW: MEGApix Fisheye Indoor/Outdoor Vandal Dome, Star-Light Plus, 9 Megapixel, 360 and 180-degree Panoramic view with Edge to Edge Clarity, 1/1.7 Image Sensor, 30fps , 2.1mm lens, Multi Codecs (H.265, H.264, MJPEG) with Simultaneous Dual Streams, 80ft Smart IR, T-WDR with Mechanical IR Cut Filter, TDN, Two Way Audio, Smart DNR 3D Digital Noise Reduction, Auto Gain Control (AGC), Auto White Balance (AWB), Motion Detection, Micro SD/SDHC Class 10 Card Slot (card not included), Web Server Bullet In, OnVIF Profile S, IP66, IK9, POE + DC12V, 5 Year Warranty.
$785.29
DWC-PVF9Di2TW: MEGApix® Pano IVA™ 9MP 360° view fisheye outdoor IP camera with IR is your gateway to powerful video analytics features. It is NDAA compliant and can monitor an entire area, providing ultimate ROI. The MEGApix IVA cameras have a powerful engine to detect and classify people and vehicles in real-time. IVA+ license upgrade offers advanced Video Content Analysis detection capabilities. This camera’s 2.1mm fisheye lens provides edge-to-edge image clarity producing 9MP panoramic images at real-time 30fps. Star-Light Plus™ color in near-total darkness technology ensures quality video in any lighting condition. The camera also offers simultaneous H.265/H.264/MJPEG codec support in an IP66 vandal-resistant, discrete housing. The camera is optimized to work with the DW Spectrum™ IPVMS instant dewarping feature.
Specifications
IMAGE |
||
|
Image sensor
|
12.4MP 1/1.7″ Star-Light Plus CMOS
|
|
|
Total pixels
|
4000(H) X 3000(V)
|
|
|
Minimum scene illumination
|
0.3 lux (color)
|
|
|
0 lux (B/W)
|
||
| S/N ratio | 50dB | |
|
Maximum resolution
|
9MP (3008 x 3000)
|
|
LENS |
||
|
Focal length
|
2.1mm, F2.2
|
|
|
Lens type
|
Fisheye lens
|
|
|
Field of view (FoV)
|
185°
|
|
|
IR distance
|
80ft range
|
|
I/O |
||
|
Audio in / out
|
1 input (1.0Vms, 3K ohm) / 1 output
|
|
|
Alarm In/Out
|
1 input / 1 output
|
|
|
Audio compression
|
G.711
|
|
OPERATIONAL |
||
|
Intelligent Video Analytics
|
IVA license: intrusion, line crossing, counting line, loitering, enter, exit, tamper
|
|
|
IVA+ license: object removed, tailgating, direction, stopped, appear, disappear, object left
|
||
|
Shutter mode
|
Auto, manual, anti-flicker, slow shutter
|
|
|
Shutter speed
|
1/15 ~ 1/32,000sec
|
|
| Slow shutter | Off, x2, x3, x5, x6, x7.5, x10 | |
|
Auto gain control
|
Auto
|
|
|
Day / night
|
Auto, day (color), night (B/W)
|
|
|
Smart DNR™ 3D digital noise reduction
|
3D DNR
|
|
|
Backlight compensation (BLC)
|
Yes
|
|
|
White balance
|
Yes
|
|
|
Mirror and flip
|
Yes
|
|
| Privacy zones | 16 programmable privacy masks | |
|
Alarm notifications
|
Notifications via e-mail, FTP server, alarm output activation or SD card recording
|
|
|
Memory slot
|
Micro SD/SDHC/SDXC (card not included).
|
|
NETWORK |
||
|
LAN
|
RJ45 (10/100Base-T)
|
|
|
Video compression type
|
H.265, H.264, MJPEG
|
|
|
Resolution
|
H.265: 3008×3000, 2800×2800, 2048×2048, 1600×1600, 640×640, 320×320
H.264: 3008×3000, 2800×2800, 2048×2048, 1600×1600, 640×640, 320×320
MJPEG: 1280×1280, 640×640, 320×320
|
|
|
Frame rate
|
Up to 30fps at all resolutions
|
|
|
Video bitrate
|
100Kbps ~ 10Mbps
|
|
|
Bitrate control
|
Multistreaming CBR/VBR at H.265 (controllable frame rate and bandwidth)
|
|
|
Streaming capability
|
Dual-stream at different rates and resolutions
|
|
|
IP
|
IPv4, IPv6
|
|
|
Protocol
|
TCP/IP, UDP, AutoIP, RTP(UDP/TCP), RTSP, NTP, HTTP, HTTPS, SSL, DNS, DDNS, DHCP, FTP, SMTP, ICMP, SNMPv1/v2/v3(MIB-2), ONVIF
|
|
|
Security
|
HTTPS(TLS), IP filtering, 802.1x, digest authentication (ID/PW)
|
|
|
ONVIF conformance
|
Yes
|
|
|
Web viewer
|
OS: Windows®, Mac® OS, Linux®
Browser: Internet Explorer®, Google Chrome®, Mozilla Firefox®, Safari®
|
|
|
Video management software
|
DW Spectrum® IPVMS
|
|
ENVIRONMENTAL |
||
|
Operating temperature
|
-4°F ~ 122°F (-20°C ~ 50°C)
|
|
|
Operating humidity
|
Less than 90% (non-condensing)
|
|
|
IP rating
|
IP66-rated weather and tamper-resistant
|
|
| IK rating | IK9 impact-resistant | |
|
Other certifications
|
FCC, CE, ROHS
 |
|
ELECTRICAL |
||
|
Power requirement
|
DC12V, POE IEEE 802.3af class 3 (adaptor not included)
|
|
|
Power consumption
|
DC12V: max 8.5W PoE: max 10W
|
|
MECHANICAL |
||
|
Material
|
Aluminum vandal fisheye housing, polycarbonate dome
|
|
|
Dimensions
|
4.9″ x 1.88” (125 x 48mm)
|
|
|
Weight
|
1.1 lbs (0.5kg)
|
|
| Warranty | 5 year warranty | |
-
$785.29
Digital Watchdog DWC-PVF9Di2TW 9MP color in near-total darkness fisheye IP camera with IVA
-
$21.83
Digital Watchdog DWC-GPLT-W Converter plate for electronic gang box – white
-
$30.68
Digital Watchdog DWC-PMB-WLW Pole mount bracket for bullets and dome cameras
-
$36.52
Digital Watchdog DWC-V1CNMW Corner and pole mount bracket – white
Key Features
- 9MP 1/1.7 image Sensor at real-time 30fps
- Star-Light Plus™ color in near-total darkness technology
- Intelligent Video Analytics (IVA)
- Extended Intelligent Video Analytics (IVA+ license required)
- Seamless integration and control of IVA rules with DW Spectrum® IPVMS
- Reduce false alarms
- Increase your recording storage with logic rules and smart recording
- Support 360° hemispheric fisheye view and 360°, 180° and 90° panoramic view
- Edge-to-edge image clarity
- 2.1mm fisheye lens
- Triple codecs (H.265, H.264, MJPEG) with simultaneous streaming
- 360° 80′ Smart IR™ with intelligent camera sync.
- Smart DNR™ 3D digital noise reduction
- True day/night with mechanical IR cut filter
- Auto gain control (AGC)
- Backlight compensation (BLC)
- Auto white balance (AWB)
- Motion detection
- Two-way audio
- Micro SD/SDHC class 10 card slot (card not included)
- Alarm sensor input
- Relay output
- Web server built-in
- PoE class 3 and DC12V
- ONVIF conformant, profile S
- NDAA compliant
- IP66 environmental-rated dust-tight and water-resistant
- IK 9-rated impact-resistant
- 5 year warranty
