Sale!
DWC-PVX20AWTW

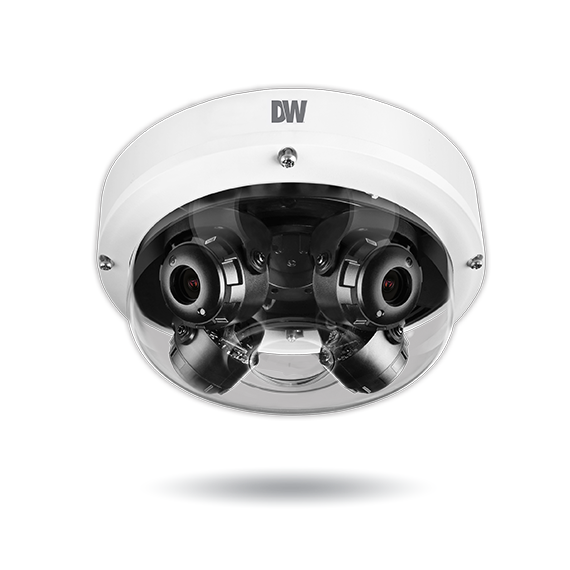

Digital Watchdog DWC-PVX20WATW MEGApix IVA 20MP multi-sensor vandal dome IP camera with vari-focal lenses and IVA

Digital Watchdog

DWC-PVX20WATW: MEGADWC-PVX20WATWpix 20 Megapixel Flexible Panoramic Indoor/Outdoor Vandal Dome (4 cameras in 1), 360 and 180 Panoramic View, 1/3″ Image Sensors, 4×2.8-8mm varifocal motorized zoom lenses, Flexible sensor positioning with magnets, Triple Codecs (H.265, H.264, MJPEG) with simultaneous Dual Streams, True Day/Night with Mechanical IR Cut Filter, True WDR, Two Way Audio, Smart DNR 3D Digital Noise Reduction, Auto Gain Control (AGC), Auto White Balance (AWB), Motion Detection, Micro SD/SDHC Class 10 Card Slot (card not included), Web Server Built In, OnVIF Profile S. IP67, PoE Class 4 and DC12V PoE Injector Included, NDAA, 5 Year Warranty. NOTE: Intelligent Video Analytics Basic inside.

$1,886.82

SKU: DIGITAL WATCHDOG:DWC-PVX20WATW Categories: , , ,

DWC-PVX20WATW: MEGADWC-PVX20WATWpix 20 Megapixel Flexible Panoramic Indoor/Outdoor Vandal Dome (4 cameras in 1), 360 and 180 Panoramic View, 1/3″ Image Sensors, 4×2.8-8mm varifocal motorized zoom lenses, Flexible sensor positioning with magnets, Triple Codecs (H.265, H.264, MJPEG) with simultaneous Dual Streams, True Day/Night with Mechanical IR Cut Filter, True WDR, Two Way Audio, Smart DNR 3D Digital Noise Reduction, Auto Gain Control (AGC), Auto White Balance (AWB), Motion Detection, Micro SD/SDHC Class 10 Card Slot (card not included), Web Server Built In, OnVIF Profile S. IP67, PoE Class 4 and DC12V PoE Injector Included, NDAA, 5 Year Warranty. NOTE: Intelligent Video Analytics Basic inside.

Specifications:

ELECTRICAL
Electrical Power Consumption DC12V: max 28W, 2.33A
PoE: max 28W, 2.583A
ENVIRONMENTAL
Compliance NDAA Compliance
TAA Compliance
UL Listing
CF
FCC
RoHS
ONVIF
Operating Humidity 10-90% (non-condensing)
Operating Temperature -4°F ~ 122°F (-20°C ~ 50°C)
I/O
Audio compression G.711
I/O Alarm in/out 1 input
1 output
I/O Audio in/out 1 output
1 input (1.0Vms, 3K ohm)
*Cameras provide a line level audio. The use of amplified microphones and speakers is recommended.
Image Resolution 20MP
Signal technology HD-TVI
Test Video Output Local video output CVBS 1.0V p-p (75Ω), 4:3 aspect ratio
Total Pixels 2592 (H) × 1944 (V) (x4)
LENS
Focal Length 2.8mm ~ 8.0mm (x4)
Horizontal Field of View (HFOV) 4x 51° ~ 93°
Image sensor 5MP 1/2.8″ CMOS sensor (x4)
IR Distance NA
Lens Type Vari-focal Lens
Minimum Scene Illumination in color 0.05 lux (color)
0.1 lux (B/W)
Veritcal Field of View (VFOV) 39°~68° (x4)
MECHANICAL
Housing Vandal Dome
Panoramic
IK rating IK10 Rated
IP rating Weather Resistant (IP67)
Materials Aluminum die-casting
Mechanical Dimensions 4.66″ x 3.58″ (118.6 x 91 mm)
8.26″ x 3.61″ (210 x 91.8 mm)
Weight 4.18 lbs (1.9kg)
Polycarbonate Dome
OPERATIONAL
3D digital noise reduction 3D DNR
Auto gain control Auto
Day and night Auto day/nighy
Day (color)
Night (B/W)
De-fog Yes
Intelligent Video Analytics IVA license: intrusion, line crossing, counting line, loitering, enter, exit, tamper
IVA+ license: object removed, tailgating, direction, stopped, appear, disappear, object left
Memory slot 4x Micro SD/SDHC/SDXC class 10 cards (cards not included)
Mirror/flip Yes
Motion Detection Yes
Notifications Email
FTP server
Alarm output activation
SD card recording
Operational features Star-Light Plus
True D/N
Privacy Zones 16 programmable privacy masks
Sharpness Yes
Shutter Mode Auto
Manual
Slow Shutter
Anti-Flicker
Shutter Speed 1/15 ~ 1/32000
Slow Shutter Speed Off
x2
x3
x5
x6
x7.5
x10
White Balance Yes
Wide Dynamic Range (WDR) True WDR 120dB
GENERAL
General Warranty 5 Year Warranty
Power Requirements 12 V DC
PoE
PoE IEEE 802.3bt class5
(High power PoE injector included)
NETWORK
Bitrate Control Multi-streaming CBR/VBR at H.264, H.265 (controllable frame rate and bandwidth)
IP IPv4
LAN 1000Base-T (1Gbps)
Network resolution 4. H.264: 2592×1944 2560×1440 1920×1080 704×576 704×480 640×480 640×360 352×288 352×240
4x MJPEG: 1920×1080, 1280×720, 800×600, 768×432, 704×576, 704×480, 640×480, 640×360, 352×288, 352×240
Protocol DDNS
DHCP
DNS
FTP
HTTP
HTTPs
ICMP
NTP
ONVIF
RTP (UDP/TCP)
RTSP
SMTP
SNMPv1/v2/v3 (MIB-2)
SSL
TCP/IP
UDP
Zeroconf (AutoIP)
Security HTTPS (TLS)
IP filtering
802.1x
Digest authemtication (ID/PW)
Stream Speed Up to 30fps at all resolutions
Streaming Capability Dual-stream at different rates and resolutions
Video Bitrate 100Kbps~10Mbps, multi-rate for preview and recording
Video Compression Type H.264
H.265
MJPEG
Video Management Software DW Spectrum® IPVMS
Any ONVIF conformant CMS
Web Viewer Windows® OS
Mac® OS
Linux® OS
Internet Explorer® browser
Google Chrome® browser
Mozilla Firefox® browser
Safari® browser



$2,434.93 Bundle Price for selected items

Key Features

  • 20MP (4x 5MP) 1/3″ image sensors at real-time 30fps
  • Star-Light Plus™ color in near-total darkness technology
  • Intelligent Video Analytics (IVA pre-loaded models)
  • Extended Intelligent Video Analytics (IVA+ pre-loaded models)
  • Seamless integration and control of IVA rules with DW Spectrum® IPVMS
  • Reduce false alarms
  • Increase your recording storage with logic rules and smart recording
  • 360° and 180° flexible panoramic view IP camera
  • 4x 2.8~8.0mm vari-focal p-iris lens with motorized zoom and auto-focus
  • Four cameras in one installation
  • 3-axis gimbal for wide range lens positioning
  • Flexible sensor positioning on a magnetic base
  • True wide dynamic range (WDR)
  • PoE injector included
  • Triple codecs (H.265, H.264, MJPEG) with simultaneous streaming
  • Two-way audio
  • Smart DNR™ 3D digital noise reduction
  • True day/night with mechanical IR cut filter
  • Auto gain control (AGC)
  • Auto white balance (AWB)
  • Motion detection
  • Micro SD/SDHC/SDXC class 10 card (card not included)
  • Alarm sensor input
  • Relay output
  • Web server built-in
  • ONVIF conformant, profile S
  • PoE class 5 and DC12V
  • NDAA compliant
  • IP67 dust-tight and waterproof to 3 feet
  • 5 year warranty
