Flir 427-0101-01-00 FLIR Elara™ R-290 Commercial Ground Security Rad
427-0101-01-00:FLIR Elara™ R-290 Commercial Ground Security Radar (FCC) Part # 427-0101-01-00
$5,936.87
427-0101-01-00:FLIR Elara™ R-290 Commercial Ground Security Radar (FCC) Part # 427-0101-01-00

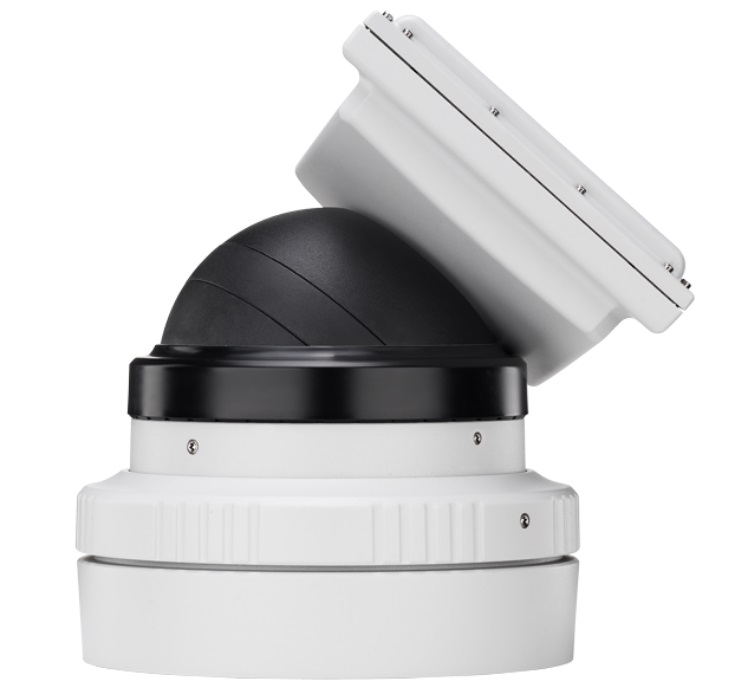

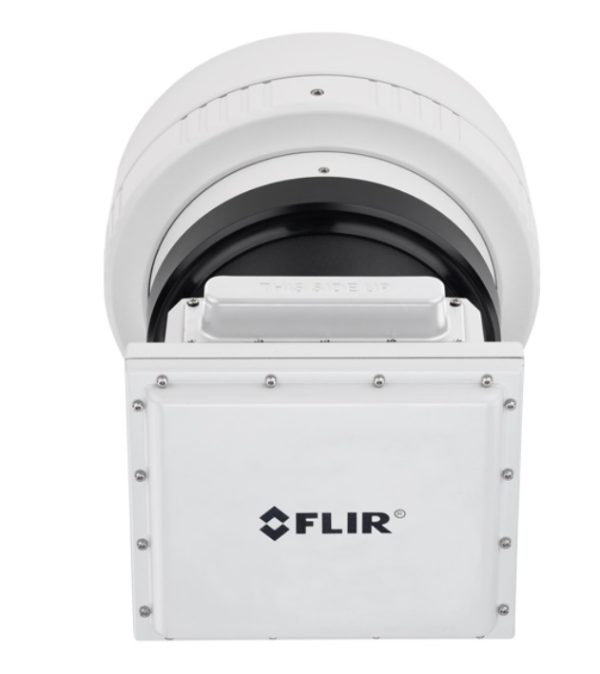

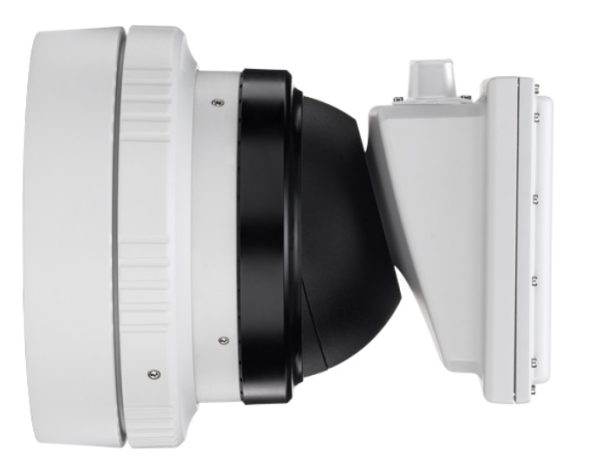

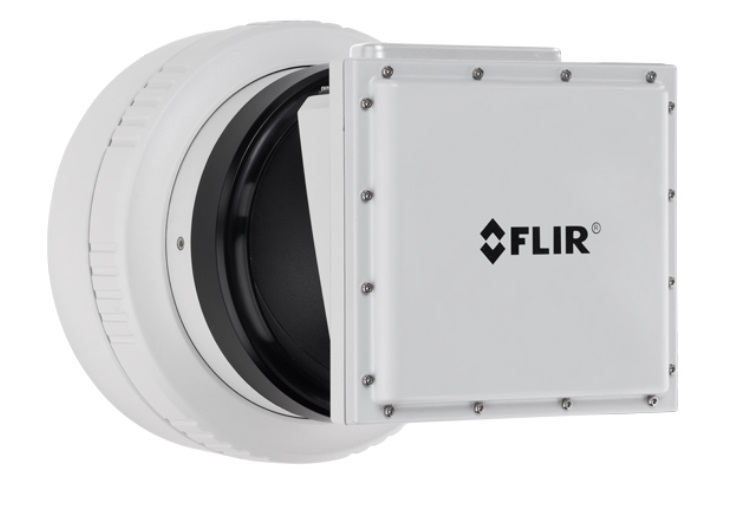

The FLIR Elara R-290 is a compact ground radar used to detect and provide early warning of intruders as part of a larger video surveillance system. Radars can track targets in all weather and lighting conditions and dynamically map them in real time for position intelligence. The Elara R-290 features a 90-degree field of view and up to 400-meter range for vehicle tracking and 200-meter range for human tracking, providing wide-area protection and situational awareness beyond the fence line. With simultaneous tracking of up to 32 targets and geolocation capability, the Elara R-290 can activate alarms and guide PTZ cameras for visual verification to maximize security coverage and increase the amount of time available to react to a threat.
General
- I/Os
- RJ45 Ethernet, 10-pin Terminal Block
- Input Voltage
- 12V DC, 24V AC, and POE+
- Power Consumption
- 7.5W
- Protocols
- AXML, ONVIF, FLIR Nexus SDK, FLIR Nexus CGI
- RF Transmit Power
- 14dBm (0.025W)
- Weight
- 5.1lbs (2.3kg)
Overview
- Dimensions (H x W x D)
- 6.3in × 6.3in × 7.7in (161mm × 161mm × 195mm)
- Non-Operating Temperature
- -50°C to 85°C
- Pan Range
- ± 43°
- Tilt Range
- +30° / -60°
Accessories
- Optional Accessories
- Pole Mount, Corner Mount, 180° Dual Wall Mount, PoE Power Supply
Environmental
- IP Rating
- IP66
- Operating Temperature
- -40°C to 70°C
Imaging & Optical
- Field of View [H x V]
- 90 x 20
- Refresh Rate
- Up to 10Hz
Measurement & Analysis
- Angular Accuracy
- 0.6m
- Coverage Area
- 7.6 acres / 30,000m2 (Human Detection)
- Frequency Range
- 24.075-24.175GHz
- Human Detection Range
- 200m
- Min Target Detection Speed
- 0.2m/s
- Radar Targets
- Max 32
- Range Resolution
- 1.5m
- Target Information
- GPS coordinates, velocity, RCS, range, azimuth angle/direction, heading, course/track, target ID
- Vehicle Detection Range
- 400m
Performance
- Range Accuracy
- <1m
Shipping Information
- Box Contents
- Radar, Back Box, Back Box Cover, Back Box Side Cover, Wall Mount Plate, RJ45 Cover, Screw Driver, Hex Wrench, 10-Pin I/O Connector
