Sale!
Flir 427-1064-91-00S FB-618 O – 24MM, 8.3HZ, EU Part # 427-1064-91-00
Flir
427-1064-91-00S:FB-618 O – 24MM, 8.3HZ, EU Part # 427-1064-91-00S
Model: 427-1064-91-00S
$5,622.97
427-1064-91-00S:FB-618 O – 24MM, 8.3HZ, EU Part # 427-1064-91-00S

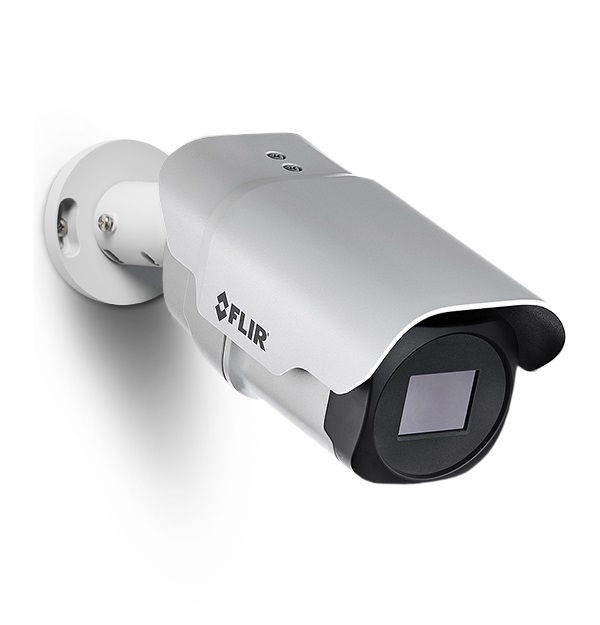

The compact FLIR Elara™ FB-Series O thermal security camera delivers industry-leading thermal imaging for perimeter and wide area protection around the clock. The camera also offers “plug-and-play” compatibility with external video analytics and major VMS suppliers, including FLIR United VMS, for additional functionality and a flawless user experience.
General
- Detector Type
- Long-Life, Uncooled VOx Microbolometer
- Dimensions (L x W x H)
- 285 x 96 x 94 mm/11.1″ x 3.8″ x 3.7″ With sunshield and fully extended mounting arm
- Effective Resolution
- 307,200 pixels
- Focus Range
- Athermalized, focus-free
- Input Voltage
- 12 VDC 24VAC PoE
- Power Consumption
- 12V DC: 17 W (maximum with heaters) / 24V AC : 13 VA (maximum with heaters) 24V DC : 13 W (maximum with heaters) / PoE: 13 W
Environmental
- Humidity
- 10%-90% relative humidity
- IP Rating (dust & water ingress)
- IP66
- Operating Temperature Range
- -40° to 50° C (-40° to 122° F) Cold Start
- Regulatory
- FCC Part 15 (Subpart B, Class A), CE marked, EN55032, EN55024, RoHS, WEEE
- Storage Temperature Range
- -40°C to 70°C (-40°-158°F)
System Integration
- Ethernet
- 10/100 Mbps
- External Analytics Compatible
- Yes
- Network APIs
- Nexus SDK for comprehensive system control and integration; Nexus CGI for http command interfaces; ONVIF Profile S
- Supported Protocols
- IPV4, HTTP, Bonjour, UPnP, DNS, NTP, RTSP, RTCP, RTP, TCP, UDP, ICMP, IGMP, DHCP, ARP
Thermal Camera
- Image Uniformity Optimization
- Automatic Flat Field Correction (FFC) – Thermal and Temporal triggers
- Pixel Pitch
- 12 um
- Thermal AGC Region of Interest [ROI]
- Default, Presets and User Defined for optimal image quality of subjects of interest
- Thermal Image Settings
- Auto AGC, Dynamic Detail Enhancement (DDE), Brightness, Sharpness, Contrast
Video & Recording
- Composite Video NTSC or PAL
- Hybrid system with IP & analog video
- Digital Video Compression
- Two independent channels of H.264 and MJPEG
- Streaming Resolution PAL/NTSC
- VGA: 640×480 & QVGA: 320×240
Visible Camera
- Array format
- 640 × 480
- Field of view (FOV)
- 18°
- f-number
- F1.0
- Focal Length
- 24 mm
- Sensitivity
- <50mK
- Spectral Range
- 8 µm to 14 µm
