Sale!
Flir CM-3102-01-I Ariel Full HD IP Mini-dome Camera (2.8mm) Part # CM
Flir
CM-3102-01-I:Ariel Full HD IP Mini-dome Camera (2.8mm) Part # CM-3102-01-I
Model: CM-3102-01-I
$369.88
CM-3102-01-I:Ariel Full HD IP Mini-dome Camera (2.8mm) Part # CM-3102-01-I

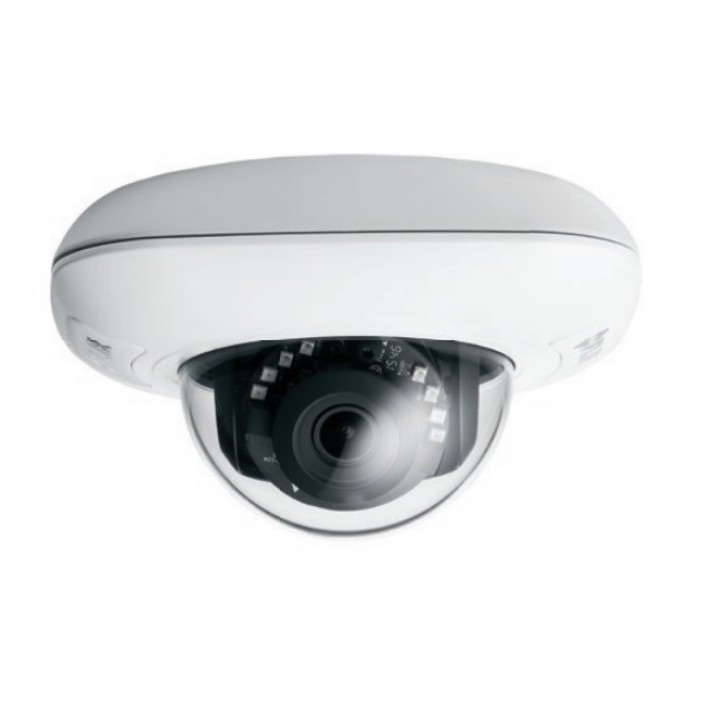

The CM-3102-01-I from Flir is a 3 megapixel outdoor network IR mini-dome camera, 2.8mm lens. The Ariel™ CM-3102 mini-dome camera with Full HD 1080p video guarantees frame rates in complex, high motion, and low light scenes found in airports, critical infrastructure sites, commercial offices and campuses. Through its motion processing architecture, the Ariel mini-dome also delivers predictable storage, reducing overall utility costs and Total Cost of Ownership (TCO).
Features
Multi-Stream H.264 Video
- Crisp, clean video for supreme identification
Guaranteed Frame Rates
- Maintains evidentiary integrity of video in challenging surveillance conditions, regardless of motion/scene complexity
Predictable Storage
-
- With special motion processing software, the camera delivers predictable storage for reduced total cost of ownership
| S P E C I F I CAT I O N S | |
| Camera | |
| Image Sensor | 1/2.8” BSI CMOS |
| Sensor Resolution | 2048 x 1536 |
| Scanning Mode | Progressive |
| Sensitivity | 0.03 (color)/0.01 (BW), 0 Lux with IR illuminator ON, measured at 30 IRE |
| Lens Type | CM-3102-01-I: Fixed 2.8mm, 102° HFOV, F1.8, D/N CM-3102-11-I: Varifocal 3-10.5mm, 31°- 88° HFOV, F1.4, D/N, Motorized with auto-focus and auto-iris |
| Automatic Electronic Shutter (AES) | 1/7.5 to 1/10,000 (auto) |
| Digital Slow Shutter (DSS) | 1/7.5 to 1/25 or 1/30 with up to 4x sensitivity boost in color or night mode |
| White Balance | Auto / ATW / Manual / One Push |
| Automatic Gain Control (AGC) | Auto |
| Back Light Compensation | On / Off |
| Wide Dynamic Range (WDR) | On / Off (78dB) |
| Noise Reduction | 3D |
| Tamper Detection | Yes |
| Privacy Zones | Yes |
| Video Motion Detection | Yes |
| Day / Night Mode | Yes |
| Mechanical IR Cut Filter | Yes |
| Signal to Noise Ratio (SNR) | ±50 dB |
| Video | |
| Compression | Fully compliant multi-stream H.264 main/high profile + MJPEG |
| Maximum Performance | H.264 30/25 @ 1080p + 720p + D1 (NTSC/PAL) |
| Resolution Range | Scalable from D1 to FHD 1080p |
| Bandwidth | Configurable between 64Kbps and 20Mbps |
| Rate Control | SVBR |
| SD Card Recording1 | microSDXC up to 128GB (Class 10) |
| IR Illuminator | |
| Distance | up to 30m (98 ft.) |
| Angle of Illumination | Full 60° |
| LED Type | High efficiency SMD |
| Peak Emission Wavelength (nm) | 850 |
| Network | |
| Network Protocols | TCP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv4, IPv6, SSL, LDAP |
| Ethernet | 10/100, auto sensing, half / full duplex (RJ45) |
| Remote Configuration | Via web browser or supported video management software |
| Firmware Upgrade | Flash memory for upgrade of camera firmware over the network |
| Supported Web Browser | Internet Explorer 10+ |
| Security | User account with password protection and IP filter |
| Audio | |
| Input | CM-3102-11-I: G.711, AAC 48KHz |
| Alarm | |
| Input | CB-3102-11-I: 1 dry alarm contact |
| Physical | |
| Enclosure | Indoor/Outdoor: IK10 rated vandal IP67 |
| Dimensions | CM-3102-01-I: 138 × 77 mm (5.43 x 3.03 in.) |
| CM-3102-11-I: 138 × 104 mm (5.43 x 4.09 in.) | |
| Unit Weight | CM-3102-01-I: 0.61kg (1.34 lbs.) |
| CM-3102-11-I: 0.92kg (2.03 lbs.) | |
| Mechanical | |
| Bubble F-Stop | F0.0 – clear bubble |
| Pan / Tilt / Rotate | CM-3102-01-I: 360° / ±63° |
| CM-3102-11-I: 360° / ±88° | |
| Electrical | |
| Input Voltage | 802.3af PoE |
| Power Consumption | CM-3102-01-I: 5W / 10W with heater and IR |
| Power Connector | CM-3102-11-I: 8W / 12W with heater and IR |
| PoE | |
| Environmental | |
| Operating Temperature2 | -40°C to 50°C (-40°F to 122°F) |
| Storage Temperature | -40°C to 60°C (-40°F to 140°F) |
| Humidity | 90% (non-condensing) |
| Warranty & Regulatory | |
| Warranty | According to FLIR RMA Policy and Process Notice document |
| USA | UL, FCC Part 15 (subpart B, class A) |
| International | CE marked, EN55022-1998 class A, EN55024, RoHS |
| 1 Excluding countries where disallowed. 2 Startup temperature -10°C/12°F. | |
|
<
|
| Camera Ordering Information | |||||
| Type | Series | Camera Resolution | Lens Options | Environmental | IR Illuminator |
| CM | 31 | 2 | x | 1 | I |
| Mini-dome | 31 = Ariel Gen II | 02 = 1080p FHD | 0 = 2.8mm | 1 = IP67 Vandal | I = 60 ° |
| Camera | 1 = 3-10.5mm | with Heater | Illuminator | ||
| Specifications are subject to change without notice. | |||||
