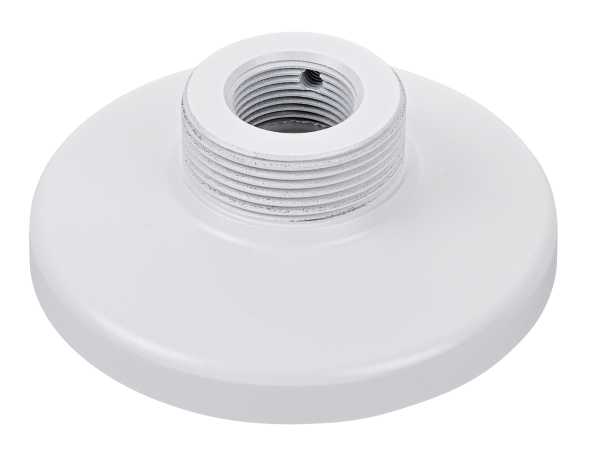

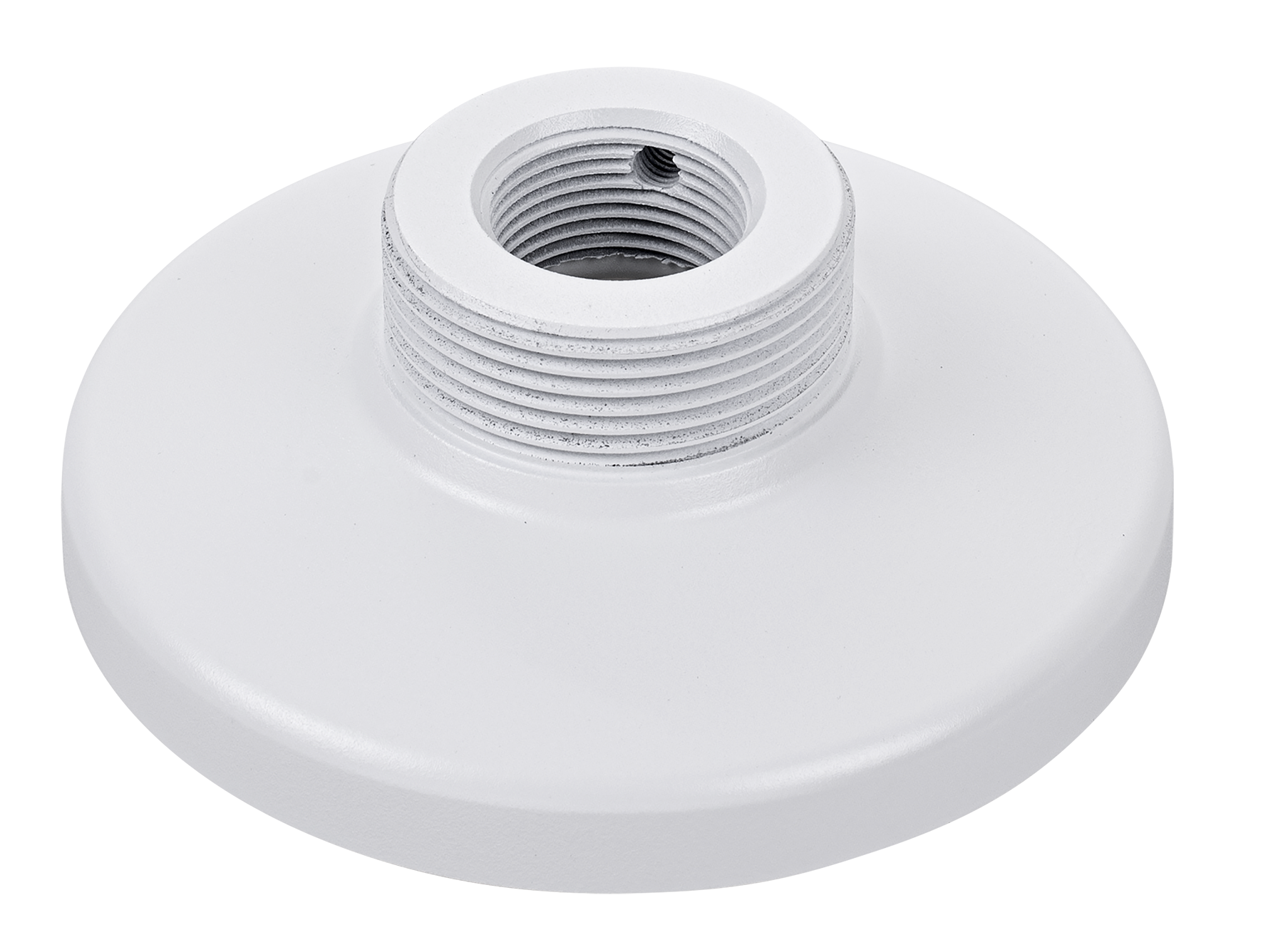

Vivotek AM-52E Outdoor Dome Mounting Adapter: ¾” NPT Female & 1½” PS

Name: Vivotek AM-52E Outdoor Dome Mounting Adapter: ¾" NPT Female & 1½" PS
SKU: VIVOTEK:AM-52E
Price: 41.00 USD
Availability: InStock

AM-52E, Outdoor Dome Mounting Adapter: ¾” NPT Female & 1½” PS11 Male for: FD9360-H, FD9380-H, IT9360-H, IT9380-H, IT9388-HT, IT9389-H, IT9389-HT, Pendant Pipe: AM-116, AM-117, Wall Mount Bracket: AM-212, AM-218, AM-221, Parapet Mounting Bracket: AM-231

$41.00

SKU: VIVOTEK:AM-52E Categories: Camera Accessories, Mounts and Brackets, Brands, Vivotek

Description

AM-52E, Outdoor Dome Mounting Adapter: Â¾” NPT Female & 1Â½” PS11 Male for: FD9360-H, FD9380-H, IT9360-H, IT9380-H, IT9388-HT, IT9389-H, IT9389-HT, Pendant Pipe: AM-116, AM-117, Wall Mount Bracket: AM-212, AM-218, AM-221, Parapet Mounting Bracket: AM-231

Technical Specifications

Product Information

Model: AM-52E

P/N: 100217700G (V01)
100217701G (V02)

Material: Aluminum Alloy

Color: White

Pipe Thread: 3/4″ NPT Female & 1-1/2″ PS Male

Dimensions: Ã˜ 115 x 41.5 mm

Weight: 244 g

Box Dimension: 171 (L) x 125 (W) x 66 (H) mm (1pc)

Box Weight: 344 g

Carton Dimension: 531 (L) x 351 (W) x 195 (H) mm (20pcs)

Carton Weight: 7,420 g

Note: This product is recommended for general outdoor environments, excluding coastal areas with high salinity.
