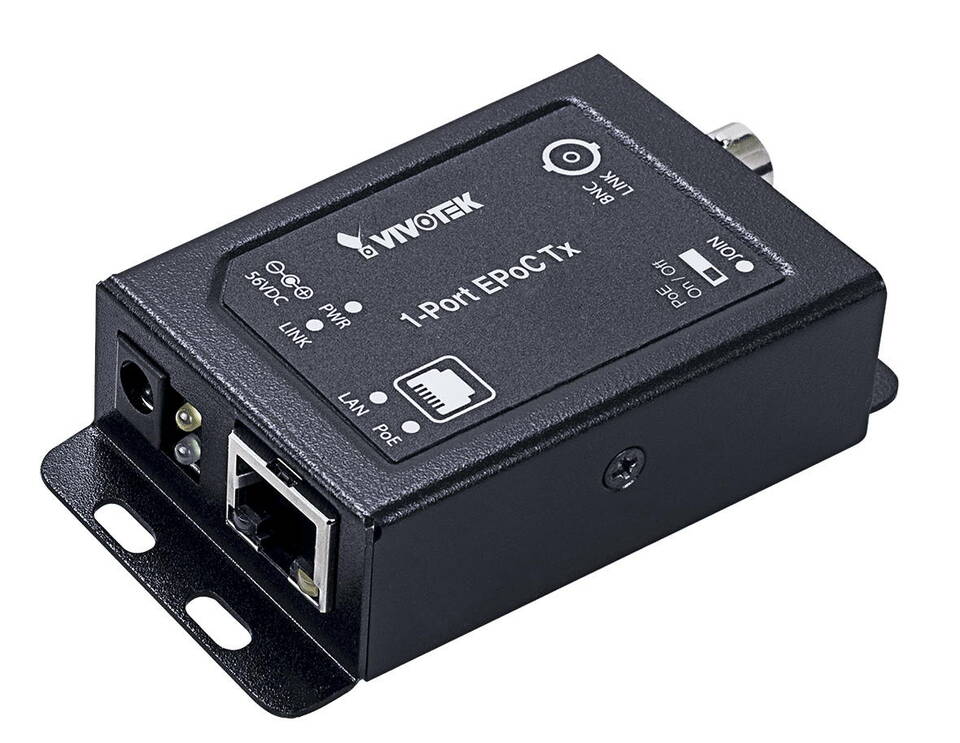

AP-FEX-0105-T, EPoC Tx Module, Input: DC 56V, 1x BNC, 1x FE RJ45, 1 DC Jack, -20゚C~60゚C
Specifications
Technical Specifications
- Model
- AP-FEX-0105-T
- Product Description
- 1 Port EPoC Tx Module
- BNC Port (75Ω)
- 1
- Ethernet Port
- 1 x 10/100Mbps RJ45
- DC Jack
- 1
- PoE On/Off Switch
- 1
- Transmission Mode
- Tx
- Max. PoE Distance (RG6)
- 1.2km/8W
- Max. Ethernet Distance (RG6)
- 2.4 km
- Power Input
- DC 56V
- Power Consumption
- 2W
- PoE Standard
- 802.3 at/af
- Dimensions
- 85.4 (D) x 47.1 (W) x 23 (H) mm
- Weight
- 0.2kg (0.44lb)
- Operating Temperature
- -20˚C ~ 60˚C ( -4˚F ~ 140˚F)
- Storage Temperature
- -20˚C ~ 85˚C ( -4˚F ~ 185˚F)
- Operating Humidity
- 5% ~ 95% non-condensing
- Safety Certifications
- CE, FCC, VCCI, LVD
- Note
- VIVOTEK’s EPoC Rx modules are only compatible with EPoC Tx modules.
