Vivotek AP-FEX-0250-T Ethernet Power over Coaxial DC in Tx Module, 1xB

• Weather-proof IP67-rated and Vandal-proof IK10-rated Housing
• Built-in 6KV Surge Protection for BNC Port
• Extend Ethernet and Power up to 1,200 m (3,937 ft) over RG6 Coaxial Cable

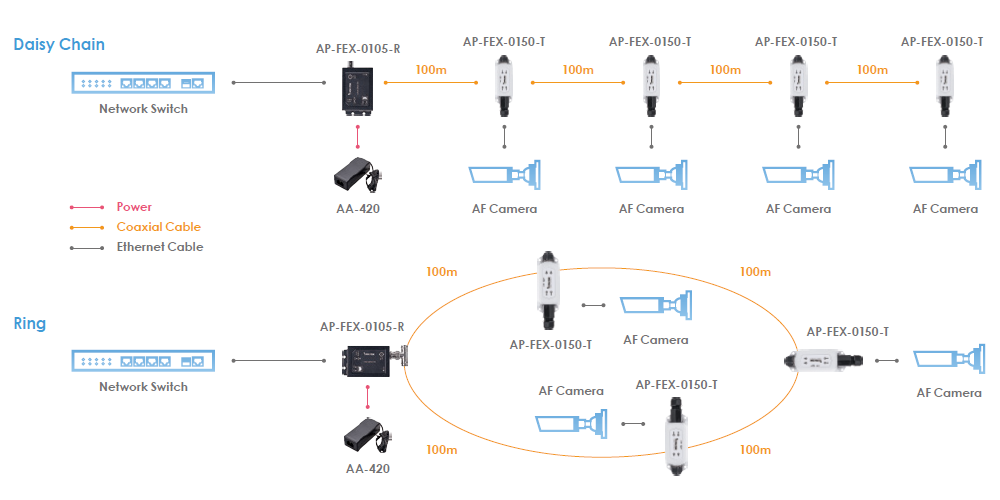

• Support Ring Topology up to 4 IEEE 802.3af Camera for Power Redundancy
• Support Daisy Chain Topology up to 4 IEEE 802.3af Camera
• Easy Installation for a Smooth Transition from Legacy to IP Camera
• Both Wall Mount and Rackmount Supported

Specifications

Technical Specifications

Model

AP-FEX-0250-T

Product Description

Outdoor 2 Port EPoC Tx Module

BNC Port (75Ω)

1

Ethernet Port

2

PoE On/Off Switch

2

Transmission Mode

Tx

Max. PoE Distance (RG6)

500m per port/Total 17W

Max. Ethernet Distance (RG6)

2.4 km

Power Input

DC 56V

Power Consumption

3W

PoE Standard

802.3 at/af

Surge Protection

BNC 6KV

Water Proof

IP67

Vandal Proof

IK10

Dimensions

203 (D) x 73 (W) x 40 (H) mm

Weight

0.36kg (0.79lb)

Operating Temperature

-30ËšC ~ 60ËšC (-22ËšF ~ 140ËšF)

Storage Temperature

-40ËšC ~ 85ËšC (-40ËšF ~ 185ËšF)

Operating Humidity

5% ~ 95% non-condensing

Safety Certifications

CE, FCC, VCCI

Note

VIVOTEK’S EPoC Tx modules are only compatible with EPoC Rx modules and switches.
